2.5 inch dome & bullet PTZYou are here:HOME >> PRODUCTS >> H.265 PTZ IP Ca... >> 2.5 inch dome &...

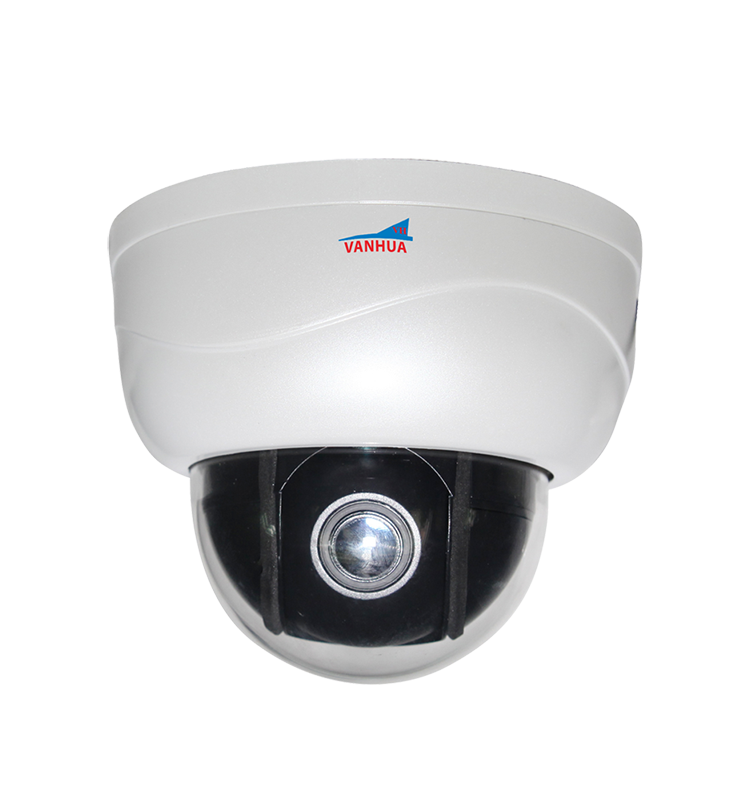

VH-NP-S05

H. 265 2.5 inch PTZ IR 40M

1/2.5" 5MP AR0521 CMOS Sensor
H.265 Compression Method
5X (f=2.7mm-13.5mm) Optical Zoom
IR Distance 40M Max
IP66 Outdoor

Enquiry Now

  • We will carefully read your message and reply you as soon as possible.
  • *
  • *
  • * *
  • *
  •
Model No. VH-NP2005-S05 VH-NP5005-S05
Camera
Soc Hi3516CV300 Hi3516D
Sensor 1/3"  CMOS 2MP  Sony323 1/2.5" CMOS 5MP AR0521
Output pixel 1920x1080/30fps
1920x1080/25fps
2592x1944/15fps                             2592x1944/15fps
Lens                                                           5X   f=2.7mm~13.5mm
BLC Support
AGC Auto/manual
WB Auto/manual/indoor/outdoor
S/N Ratio >50dB
Dome
Communication Protocol  TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
Software Control IE, CMS, Management Platform
Video compression H.264/H.265/M-JPEG
Audio compression G711PCM
Mobile View(optional) Android  iPhone
Rotation Range Pan: 0°~355º , Tilt: 0°~93 º
Rotation Speed Pan: 0~25°/s , Tilt: 0~20°/s
Auto Flip Support
Preset Points 220pcs presetsdwell time 01-60s interval available
Guard Tours 3 groups ( each group 16 presetdwell time and speed selectable)
AB scan range Support, 0-355º
AB scan speed 1-9 grades
Operating temperature -15~+60
Operation menu English
Auto Control IR LED PWM
Consumption ≤10W
Lightning Protection Transient voltage 6000V
Related validation IP66,CE,FCC,RoHs
IR parameter
Auto Control IR LED PWM
IR distance up to 40 meters
LEDs 2 PCS Array 35Mil IR LED
Support ambient light detection IR illumination on 1-9 grades selectable
